5 Ton Fast Speed Wire Rope Winch – Diesel/Gasoline Engine Powered for Transmission Line Stringing and Cable Pulling
Definition of Wire Rope Winch
A wire rope winch is a mechanical pulling and lifting device that uses a strong steel rope wound around a drum, powered by an engine. The 5 ton fast speed wire rope winch is designed to handle heavy-duty tasks such as pulling, lifting, or positioning loads. With the option of a diesel or gasoline engine, this winch delivers high power and stable performance in demanding environments like power line construction, cable stringing, and industrial lifting operations.
Overview of Wire Rope Winch
The wire rope winch is widely used in transmission line projects, construction sites, and utility works where efficiency and safety are critical. This 5 ton model provides fast line speed, making it suitable for long-distance cable pulling and tensioning work. Its compact yet powerful structure ensures easy transportation and reliable operation, making it an indispensable tool for linemen and contractors.
Features of Wire Rope Winch
-
5 Ton capacity for heavy-duty pulling and lifting applications.
-
Fast speed operation ensures higher efficiency during stringing projects.
-
Diesel or gasoline engine options to suit different job site requirements.
-
High-strength wire rope resistant to wear and corrosion.
-
Sturdy steel frame built to withstand harsh outdoor conditions.
-
Easy mobility with compact design for field operations.
-
Reliable braking system for safe operation under heavy load.
Advantages of Wire Rope Winch
Using a wire rope winch provides clear benefits:
-
Versatility – suitable for both pulling and lifting heavy loads.
-
High efficiency – fast speed reduces project time and labor costs.
-
Strong adaptability – engine power allows operation in remote areas without electricity.
-
Durability – heavy-duty components ensure long service life.
-
Safety – advanced braking and control systems minimize risks.
Applications of Wire Rope Winch
The wire rope winch is essential for multiple industries and tasks, including:
-
Transmission line stringing and power line construction.
-
Pulling overhead conductors and underground cables.
-
Construction material lifting and positioning.
-
Mining, forestry, and utility projects requiring heavy pulling power.
-
Industrial hoisting and equipment installation.
How to Use Wire Rope Winch
-
Position the wire rope winch on stable ground and secure it firmly.
-
Select the proper length and strength of wire rope for the task.
-
Engage the engine (diesel or gasoline) and check the controls before operation.
-
Slowly apply pulling or lifting force, ensuring the load is balanced.
-
Use the braking system to stop safely after completing the task.
Note: Always follow safety protocols and wear protective gear when operating a wire rope winch.
Technical Data
| Model Type | Gear | Pulling Force(KN) | Pulling Speed(m/min) | Power(KW) | Dimension(mm) | Weight(KG) |
| JJM5B | Fast | 9 | 24 | 10 | 1100*498*600 | 137 |
| Mid | 15 | 14 |
| Mid | 30 | 9 |
| Slow | 50 | 5 |

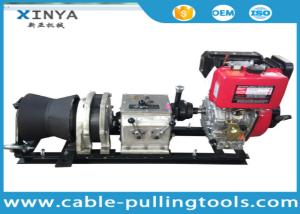

Picture of real products
FAQ – Wire Rope Winch
Q1: Can the wire rope winch be used for both pulling and lifting?
Yes, this 5 ton wire rope winch is designed for dual applications – it can pull cables or lift heavy loads vertically.
Q2: What engine options are available?
Customers can choose between a diesel engine or a gasoline engine depending on the site requirements.
Q3: Is the wire rope included with the winch?
Yes, the standard package comes with a high-strength wire rope suitable for heavy-duty pulling.
Q4: Can the wire rope winch be used in remote areas without electricity?
Yes, since it is engine-powered, it is perfect for field operations where electricity is unavailable.
Q5: How should I choose the right wire rope winch for my project?
Consider the load capacity (5 ton), line speed, engine type, and application (stringing, lifting, construction) to select the most suitable model.
